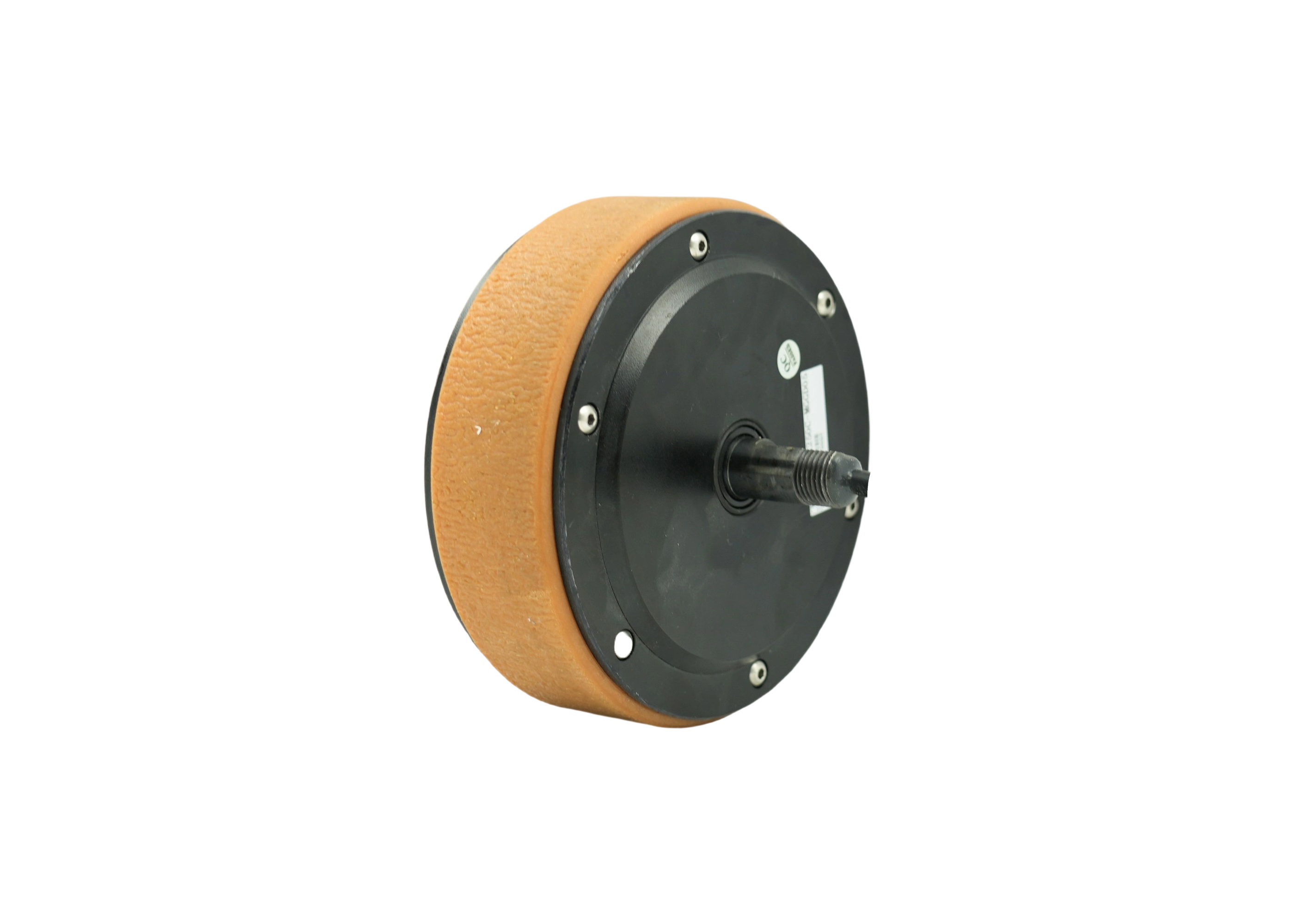

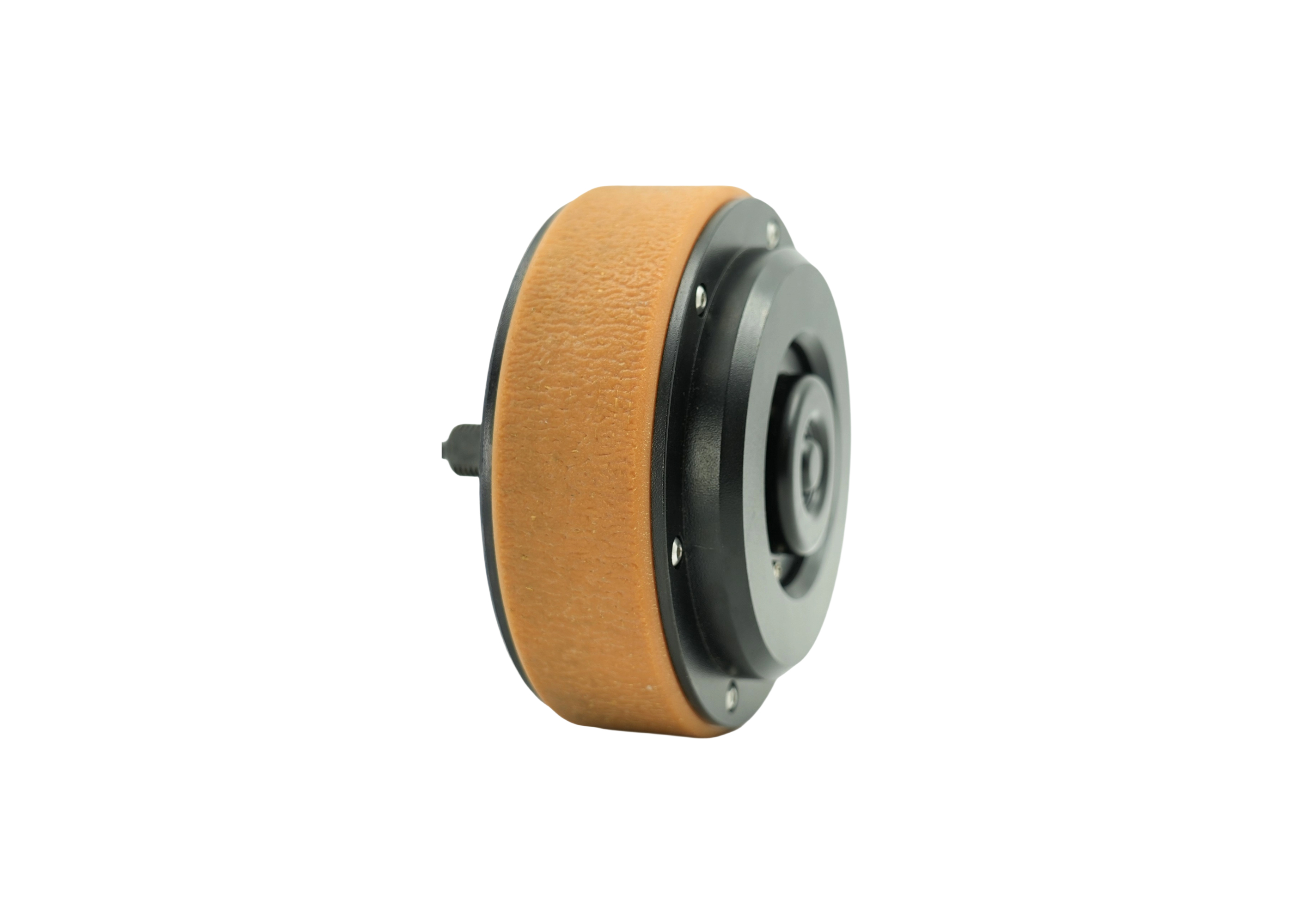

5.5 inch 7 Nm anti-slip hub servo motor
5.5 inch 7 Nm anti-slip hub servo motor
Servo hub motor,another name called hub servo motor,servo wheel or electric wheel.
Specifications
Parameters | WS55L-07A250C-MGGA03 |
RatedVoltage | 36VDC |
RatedCurrent | 7Arms |
Maximum speed | Rotary speed 250rpm Line speed 1.8m/s |
7N.m | |
Peak Torque | 18N.m |
InsulationResistance | ≥200MΩ |
Withstand voltage | 600VDC 1SEC 10mA |
RoHS | RoHS |
Hardness Class | A68 |
Operating temperature | -10℃～40℃（Non-frozen） |
Working humidity | 5～95%RH（Non-condensation） |
Stored temperature | -10℃～70℃ (Non-frozen) |
Storage humidity | Below 90%RH(Non-condensation） |
Protection Class | IP67 |
